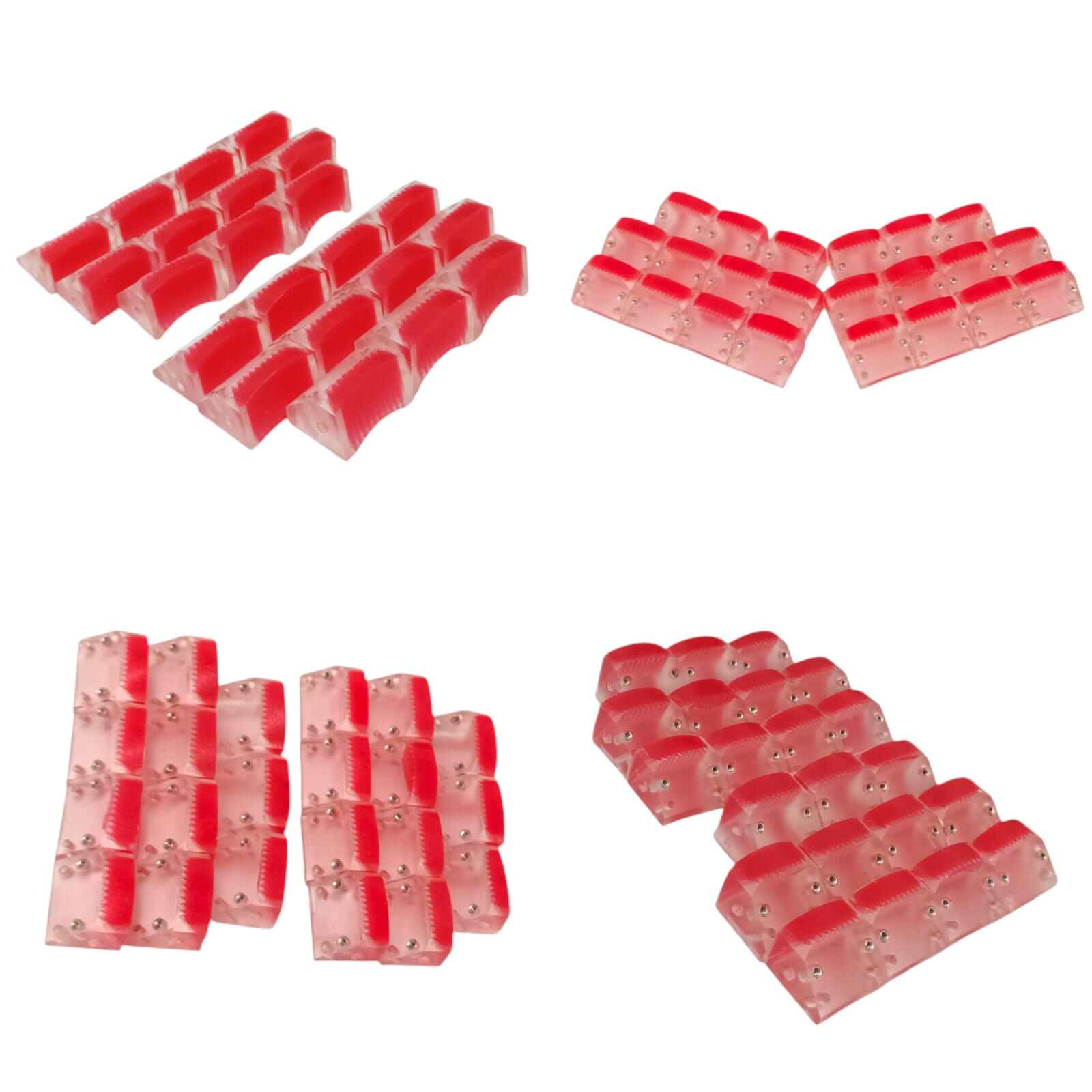

Part No: A15-22-Twenty two(22) set Dual Scan set A15 Series Wedges
Twenty two(22) set dual side scan A15 Series Wedges with AOD's 0.84" to 4.5" & Flat angel Wedge
Set include Each 2 number from below Wedge specifications:
1. Flat angle Wedge
2. AOD angle Wedge 0.84" Tube ranger coverable 19.2mm(0.756") - 32.1mm(1.26")
3. AOD angle Wedge 1.05" Tube ranger coverable 24mm(0.945") - 40mm(1.575")
4. AOD angle Wedge 1.315" Tube ranger coverable 30mm(1.183") - 50mm(1.972")
5. AOD angle Wedge 1.66" Tube ranger coverable 37.95mm(1.494") - 63.25mm(2.49")
6. AOD angle Wedge 1.9" Tube ranger coverable 43.43mm(1.71") - 72.4mm(2.85")
7. AOD angle Wedge 2.375" Tube ranger coverable 50.8mm(2") - 60.3mm(2.375")
8. AOD angle Wedge 2.875" Tube ranger coverable 60.3mm(2.375") - 73.0mm(2.875")
9. AOD angle Wedge 3.5" pipe ranger coverable 73.0mm(2.875") - 88.9mm(3.5")
10. AOD angle Wedge 4" pipe ranger coverable 88.9mm(3.5") - 101.6mm(4")
11. AOD angle Wedge 4.5" pipe ranger coverable 101.6mm(4") - 114.3mm(4.5")
Wedge 60 degree for A15 phased array probe - Designed for azimuthal
scanning from 40 to 70 degree using 60 degree nominal angle,
Stainless steel screw receptacles provide a firm anchoring of probe to wedge
Wedges are available with irrigation, holes for mounting a scanners and carbide pins for wear resistance
Wedges are designed to perform manual or automated scans (scanners)
